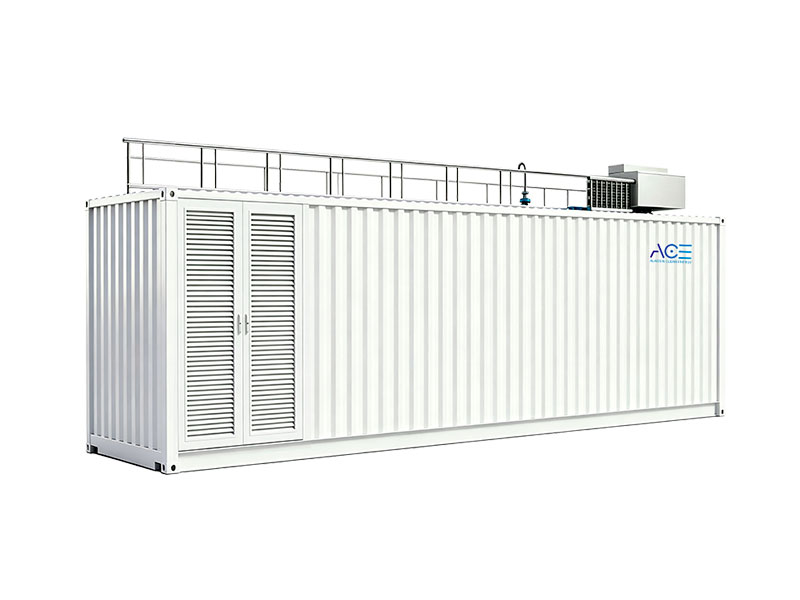

HERS-M500K Methanol Reforming LT-PEM Stationary Power System

FD38(T) Diesel Forklift
Details:

This 500 kW stationary power generation system uses an integrated technical route of on-line methanol steam reforming coupled with a PEM fuel cell. Aqueous methanol is used as feedstock to produce hydrogen on site and use it as generated. Methanol serves as a safe, efficient liquid hydrogen carrier, completely avoiding the safety risks and high cost of high-pressure hydrogen storage and transport. The equipment responds quickly and operates stably across all operating conditions, meeting needs for long-term continuous supply, grid-connected peak shaving, and off-grid independent supply. Multiple units can be paralleled and expanded to the megawatt class. Typical applications include industrial parks, zero-carbon parks, data centers, and integrated energy stations. The integrated modular design uses a standardized layout for convenient installation, commissioning, and later O&M.

Send Inquiry
Product Features
  • 01

    On-site H₂, no storage

  • 02

    Adaptive stable control

  • 03

    CHP high efficiency

  • 04

    Auto remote monitoring

Hydrogen Production System Parameters
ParameterSpecification
Container dimensions12000×2400×2900 mm (L×W×H)
Weight10 t
Degree of protectionOutdoor-rated cabinet
Hydrogen pressure≤1.3 MPaG
Dew point-73°C
Hydrogen temperature≤40°C
Flow range30%–110%
Gas output400 Nm³/h
Methanol consumption224 kg/h
Tap water consumption240 L/h
Operating power42 kW
Installed power65 kW
Circulating water20 t/h
Instrument air15 Nm³/h

Power Generation System Parameters

ParameterSpecification
Container dimensions6058×2438×2591 mm (L×W×H)
Weight5t
Rated output & efficiency500 kW, 49.0% BOL
DC output voltage500–750 V DC (customizable)
AC output voltage380/480 VAC, 3P, 50/60 Hz
Load turndown range30%–110%
Hydrogen supply pressure1.2±0.1 MPa(g)
Hydrogen consumption29.4 kg/h at 500 kW full load (BOL)
Ambient temperature-30 to 45°C
EmissionsZero emissions; pure water only
CommunicationModbus RTU
Noise≤55 dB (at 1 m)
Optional componentsHeat-exchange package (for CHP expansion); energy storage battery (capacity configurable)
